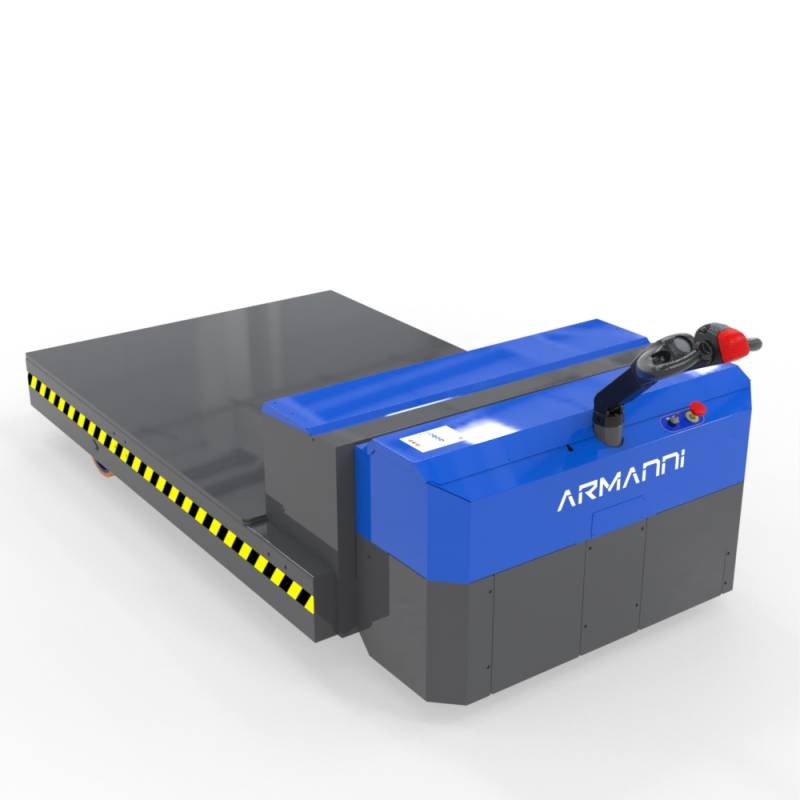

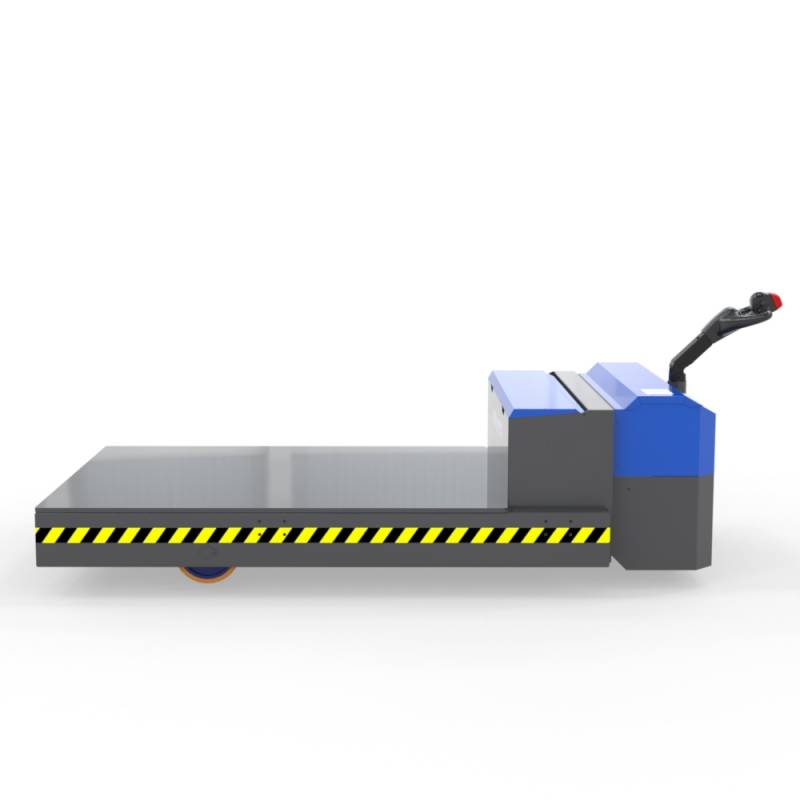

TPP HL AC-evo

TPP HL AC-evo represents our line of tiller drive transporters with an extra-heavy structure. They are specifically designed and developed for transporting loads and semi-finished products of significant mass and/or dimensions, with capacities up to 30000 kg. The standard power-steered tiller drive allows for easy movement of semi-finished products between various work steps. Thanks to its extreme versatility, TPP HL AC-evo can move from one warehouse to another, a task that cranes or overhead cranes cannot perform. TPP HL AC-evo is designed with compact dimensions and a minimal footprint relative to its capacity, enabling it to navigate even the tightest spaces where forklifts of equal capacity cannot reach. TPP AC-evo is designed solely for transport and features a fixed loading platform. The size of this platform can be customized to meet your needs, and it does not have a lifting feature.

Request information

EXTRA-STRONG STRUCTURE AND COMPONENTS:

Designed for the toughest of tasks, our tiller drive transporters feature an extra-durable structure and components. The traction system, which can be configured with either a 24V or 48V motor, is built to withstand the most demanding working conditions. This robust design ensures the safe handling of even exceptional loads, up to a massive 30000 kg.
MULTIPURPOSE TRANSPORTER:

Engineered for the safe and effortless transportation of all types of cargo and semi-finished goods from one stage of the work process to the next.
MAXIMUM VERSATILITY:

The tiller steering enables free movement across spaces, even transitioning from one warehouse to another.
OPTIMIZED FOR SPACE EFFICIENCY:

The TPP HL AC-evo, with its compact design, can maneuver with ease in confined spaces where other forklifts of the same capacity might struggle.
CUSTOMIZABLE DIMENSIONS:

The size of the loading platform on our tiller drive transporters can be tailored to meet your specific transport requirements and the nature of the load you need to move.

Technical data sheet

Model	Maximum Load Capacity (kg)	Centroid (mm)	Battery Voltage (v)	Platform Width (mm)	Platform Length (mm)
TPP HL AC-evo 50	5000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 60	6000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 70	7000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 80	8000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 100	10000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 120	12000	su misura	48 V	su misura	su misura
TPP HL AC-evo 150	15000	su misura	48 V	su misura	su misura
TPP HL AC-evo 200	20000	su misura	24V AC	su misura	su misura
TPP HL AC-evo 250	fino a 25000	su misura	48 V	su misura	su misura
